ZOOM

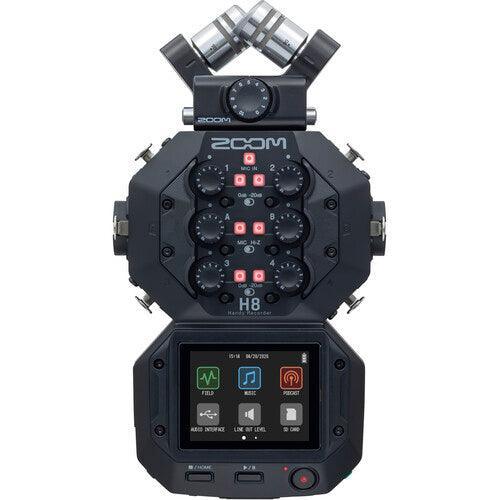

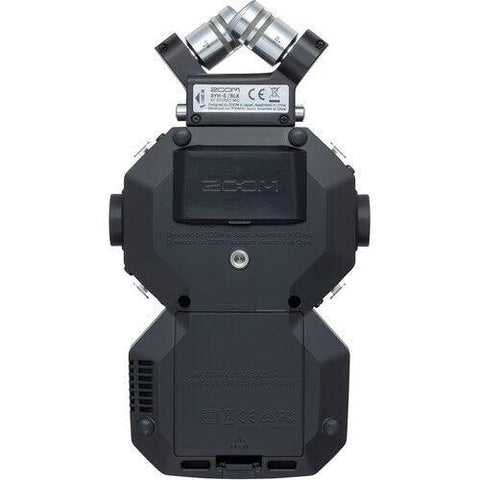

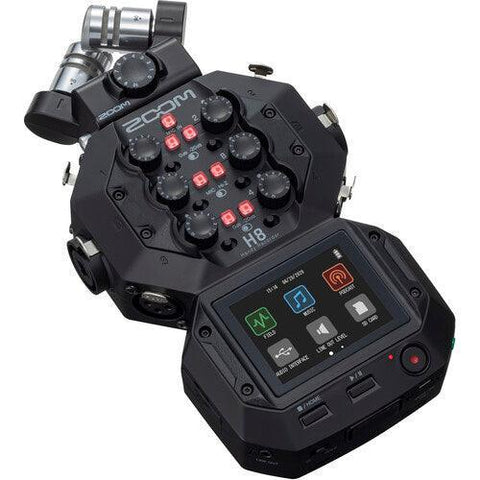

Zoom H8 8-Input / 12-Track Portable Handy Recorder
HIGHLIGHTS
- Podcast/Music/Field Recording Modes
- Swappable X/Y Stereo Mic Capsule
- 4 x XLR Mic Inputs with Pads and +48V
- 2 x XLR-1/4" Mic/Line/Hi-Z Inputs
- Intuitive Color Touchscreen
- 3.5mm Line & Headphone Outputs
- Onboard Compressor & Low-Cut Filter
- Powered via Batteries, AC, or USB
- Supports SDXC Cards up to 512GB
- Stereo Safety Track Recording
Zoom H8 Specs
Portable Recorder
| Number of Tracks |
WAV: 12 (8 Inputs + Stereo Mix) |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Microphone | Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration |
| Built-In Speaker | Yes, 400 mW Mono |
| Display | 2.4" / 6.1 cm Color LCD Touchscreen |
| Memory Card Support | SD (Up to 2 GB) SDHC (4 GB to 32 GB) SDXC (64 GB to 512 GB) |
| Internal Storage | None |
Recording
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 128 kb/s 192 kb/s 320 kb/s |
| Signal Processing | Compressor, Limiter, Low-Cut Filter |
| Timecode | No |
Connectivity

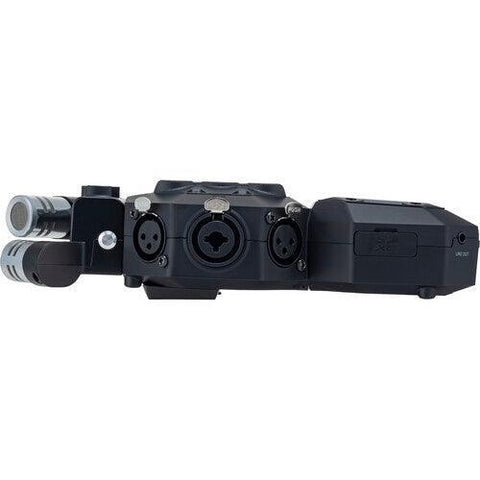

| Analog I/O | 4 x XLR 3-Pin Female Balanced Mic Input (Lockable) 2 x Combo XLR-1/4" TRS Female Balanced Instrument/Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Digital I/O | None |
| Phantom Power | +12 / 24 / 48 V (Selectable on Individual Inputs) |
| Host Connection | 1 x Micro-USB |
Power
| Power Options | Batteries, USB Bus Power, AC/DC Power Adapter |

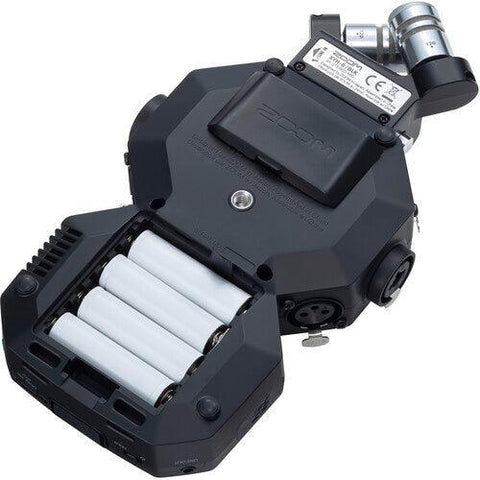

| Battery Type | 4 x AA (Included) |
| Approximate Battery Life | 20 Hours |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
Physical
| Mounting Options | 1/4"-20 Female (Bottom) |
| Dimensions | 4.6 x 1.9 x 6.4" / 116.4 x 48.6 x 163.3 mm (Recorder) 3.1 x 1.8 x 2.4" / 78.9 x 45.2 x 60.2 mm (X/Y Mic) |
| Weight | 12.5 oz / 354 g (Recorder) 4.6 oz / 130 g (X/Y Mic) |
