SmallHD

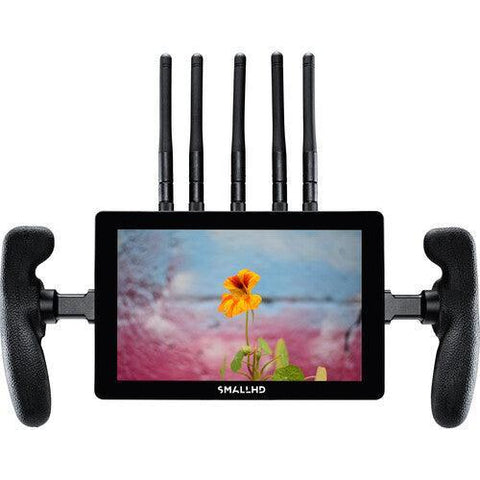

SmallHD 7" Cine 7 On-Camera Monitor Kit with Bolt 4K Receiver (V-Mount)
HIGHLIGHTS

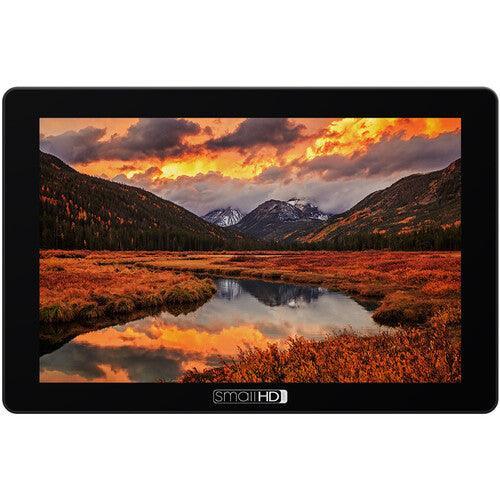

- 7" 1920 x 1200 Touchscreen Display
- 1800 cd/m², 10-Bit IPS LCD Panel
- Bolt 4K Wireless Receiver
- 1080p Input, Receive Wireless up to 4K30
- V-Mount Module Battery Plate
- 1 x HDMI Input, 1 x HDMI Output
- 1 x 3G-SDI Input, 1 x 3G-SDI Output
- HDMI/SDI Cross Conversion
- Compatible with any Bolt 4K Transmitter
- Card Slot for Image Capture/LUTs/Upgrade
SmallHD Cine 7 Bolt Specs
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| # of Channels | 13 (40 MHz) 25 (20 MHz) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 17 dBm |
| Wireless Video Compression | Uncompressed |
Interfaces

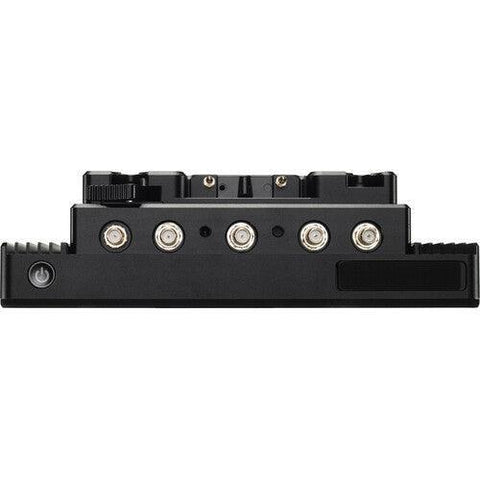

| Antenna Ports | 5 x RP-SMA Female |
| Video Connectors | 1 x HDMI Output |
| Other I/O | 1 x USB Micro-B Input |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Encryption | 256-Bit AES |
Format Support
| Video Format | SDI/BNC: 1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps 1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps HDMI: UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode | Yes |
Display
| Panel Type | OLED |
Power
| Built-In Battery | None |

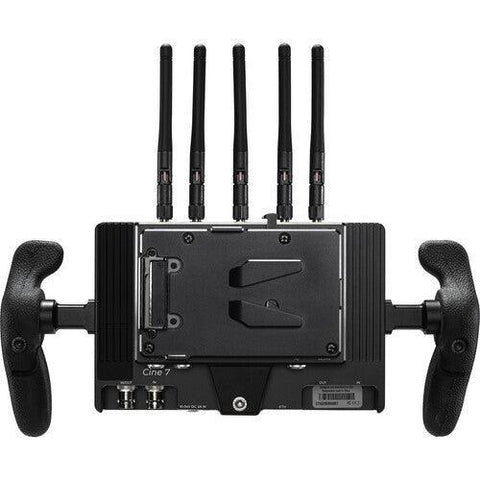

| Battery Support | 1 x V-Mount |
| Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
| Power Consumption | Device: (11 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
